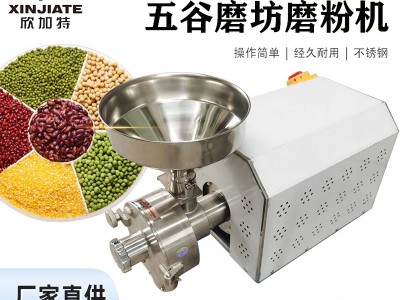

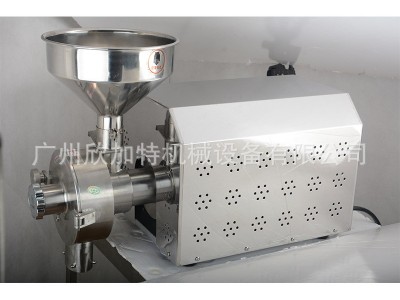

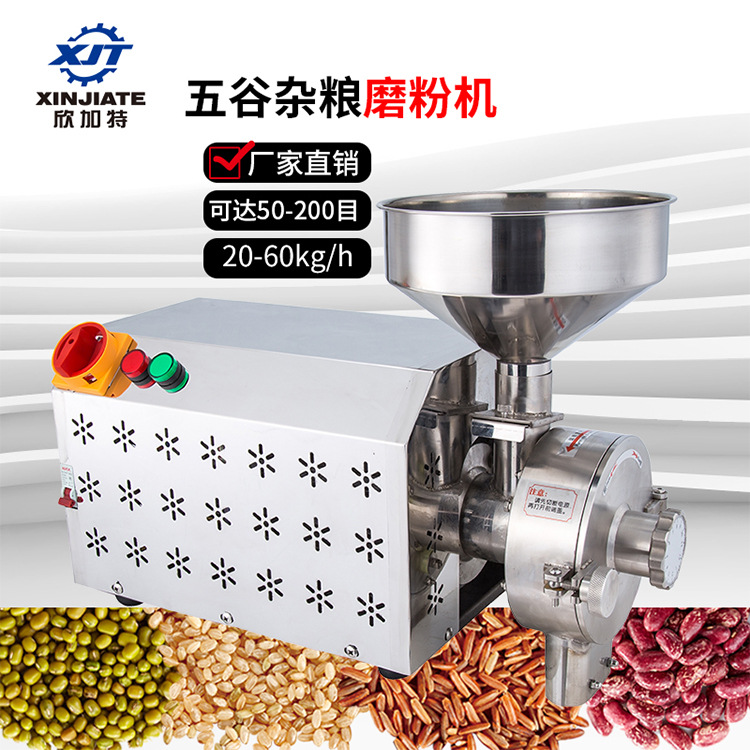

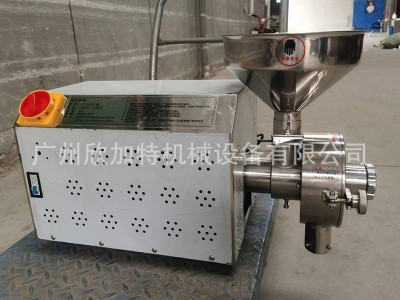

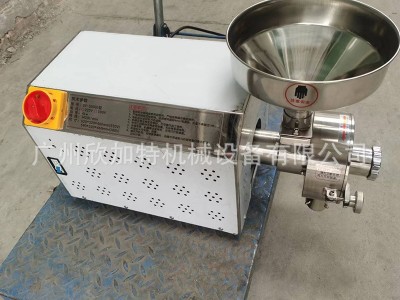

工厂直供五谷杂粮磨粉机五谷粉碎机大功率磨粉机超静音

价格:￥4200.00/台
起订:1台
供应:5855台
发货:2天内

立即购买

订货号XJT-3000T

品牌欣加特

货号XJT-3000T

型号XJT-3000T

适用物料通用

应用领域食品、化工、制药、日化

生产能力20-40（kg/h）

主轴转速1420（r/min）

进料粒度≤30（mm）

电机功率4（KW）

出料粒度0.2（mm）

外形尺寸0.6*0.26*0.43（m）

重量30（kg）

粉碎程度超细磨机

物料含水量小于1%

产品参数Product parameters

型号model	XJT-3000L
电压Voltage	220/380V
电机功率Motor Power	3kW
电机转速Motor speed	1400 r/min
成品细度Finished fineness	50~200目
生产能力production capacity	30~60kg/h
外形尺寸Dimensions	630*310*400mm
机器重量machine weight	65kg



磨粉机特点：

1. 整机不锈钢机体增加了钢材的刚性和厚度，有效控制了磨粉时摩擦产生的噪音扩散，从而降低磨粉时的噪音。

2. 机头前端盖增加设计硅胶密封圈，防止了前端盖因加工工艺产生的缝隙漏粉。

3. 机器连接轴是独立分开的，不与电机轴直接连接固紧的，有效的控制因连接轴加工工艺产生的同轴度（同心度）误差，提高动磨盘运转时的平稳度及磨粉细度，降低磨粉时的噪音

4. 电机由公司研发部与电机厂家合作开发，应用液压电机的高负载能力数据和电机体型大而短设计而成，电机工作平稳、升温低、连续工作时间长，动力输出扭矩大。

Mill features:
1. The stainless steel body of the whole machine increases the rigidity and thickness of the steel, which effectively controls the noise diffusion caused by friction during grinding, thereby reducing the noise during grinding.
2. The front end cover of the machine head is additionally designed with a silicone sealing ring, which prevents powder leakage from the gap caused by the processing process of the front end cover.
3. The connecting shaft of the machine is independent and separate, and is not directly connected and fastened with the motor shaft, which can effectively control the coaxiality (concentricity) error caused by the processing technology of the connecting shaft, and improve the smoothness and grinding of the moving grinding disc during operation. Fineness, reduce noise when grinding
4. The motor is developed by the company's R&D department in cooperation with the motor manufacturer. It is designed with the high load capacity data of the hydraulic motor and the large and short size of the motor. The motor works smoothly, with low temperature rise, long continuous working time and large power output torque.





产品详情Product details
